The Cast Base of a Waterjet Cutting Platform: A Guarantee of Stability and Precision

The cutting platform base is a crucial component in the design and manufacture of waterjet cutting machines. It not only bears the weight of the entire cutting system but also requires sufficient rigidity and stability to ensure high-precision cutting and long-term equipment stability. In this area, cast bases, due to their unique advantages, have gradually become the preferred solution for high-performance waterjet cutting machines. In particular, cast bases offer significant advantages over welded bases in several aspects.

1. Superior Rigidity and Stability

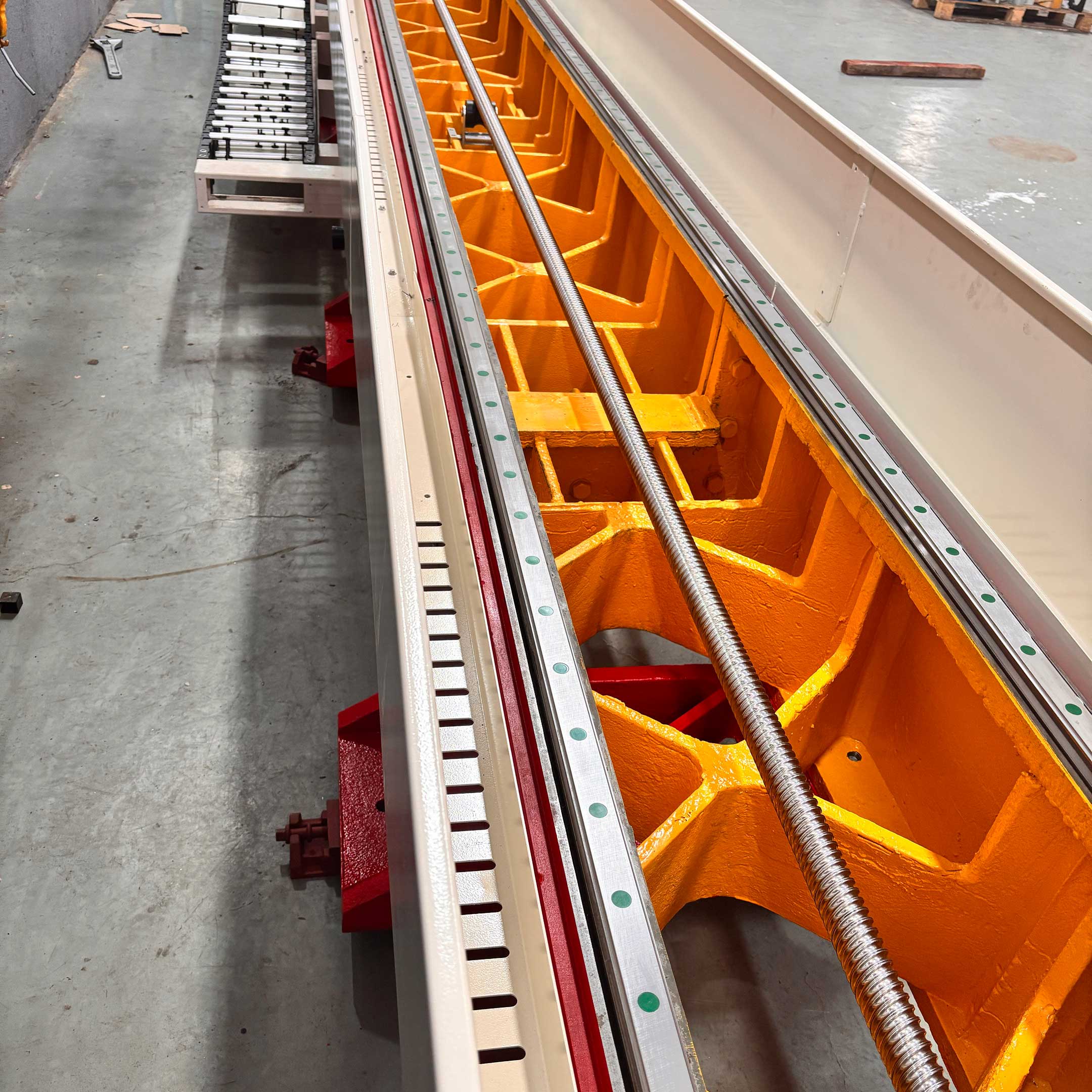

Waterjet cutting machines generate significant dynamic loads and vibration during operation. As the core support structure of the machine, the cutting platform base must possess exceptional rigidity and stability. The cast base utilizes an integrated casting process, resulting in a uniform and dense metal structure that effectively dissipates and absorbs vibrations generated during operation, reducing the impact of mechanical stress on the equipment. This characteristic gives the cast base a significant advantage in ensuring cutting precision.

In contrast, welded bases are typically welded together from multiple steel plates or metal components. Thermal stress in these components can cause internal stresses during welding, leading to deformation of the base. Although this deformation can be compensated for through design, the rigidity and stability of a welded base are far inferior to those of a cast base, which may affect the long-term accuracy and operational stability of the waterjet cutting machine.

2. Excellent Vibration Resistance

During the waterjet cutting process, especially under high pressure and high-speed motion, the machine platform may be subjected to significant vibration and impact, which poses a threat to cutting accuracy and equipment life. Cast base materials generally have good vibration resistance, effectively suppressing the propagation of vibration, thereby improving machine operational stability and cutting quality.

In contrast, while welded bases can be designed to reduce vibration through reinforcing ribs or frames, their vibration resistance is inferior to that of cast bases due to the presence of welded joints. Over long-term use, fatigue cracks may develop in welded joints, leading to vibration problems during operation, which in turn affects cutting performance and machine lifespan.

3. Reduced Maintenance Frequency and Extended Service Life

Due to the high stability and vibration resistance of a cast base, it effectively reduces mechanical wear and structural damage caused by vibration. This means that over the long term, maintenance frequency is low and maintenance costs are more manageable. The cast base design ensures stable operation in harsh operating conditions, significantly extending the lifespan of the waterjet cutting machine.

Welded bases, on the other hand, present more complex challenges. Welded joints may loosen or crack over time, especially under high loads and vibration. This leads to frequent repairs and replacements, increasing overall maintenance costs and downtime.

4. Higher Precision and Cutting Results

The cutting platform of a waterjet cutting machine must withstand the impact of high-speed, high-pressure water jets, placing extremely high demands on its rigidity and stability. The cast base, through its integrated casting process, reduces deformation during operation, ensuring high-precision cutting. Even when cutting delicate materials, the cast base maintains a flat and stable platform, improving cutting quality.

In contrast, welded bases may experience slight deformation due to uneven material splicing or thermal deformation during welding. This deformation can directly affect cutting quality, especially in precision cutting applications, resulting in irregular cuts or loss of precision.

5. Suitable for Heavy-Load and Large-Dimensional Applications

Cast bases are particularly effective in applications involving heavy-duty or large-sized waterjet cutting machines. The cast base is designed to withstand greater loads and accommodate higher-pressure cutting tasks, especially when processing thick plates, hard materials, or cutting large areas. A cast base maintains platform stability, ensuring smooth operation under long-term high loads.

Welded bases may experience localized deformation or fatigue when subjected to heavy loads. Especially in large-scale platform applications, welded joints may not fully withstand the impact of high pressure, affecting the long-term stability of the machine.

Summary

Compared to welded bases, cast bases offer significant advantages in stability, vibration resistance, precision, and service life. While the casting process carries a higher cost, the high precision, high efficiency, and low maintenance it provides for waterjet cutting machines make it the preferred choice for high-end waterjet cutting machines. Whether for heavy-duty cutting, precision cutting, or long-term production, cast bases provide more reliable and stable performance, helping companies improve productivity and enhance product quality.

Selecting the right base is not only a crucial aspect of waterjet cutting machine design but also crucial to ensuring equipment performance and customer satisfaction. With its unique advantages, cast bases are undoubtedly the ideal choice for waterjet cutting machines seeking high precision and stability. WINWIN Waterjet Cutting Company provides a variety of high-precision waterjet cutting machines based on cast bases to customers around the world and has gained wide industry recognition. WINWIN Waterjet Cutting Company is committed to helping customers achieve more efficient production and more stable long-term use by providing higher quality equipment.
